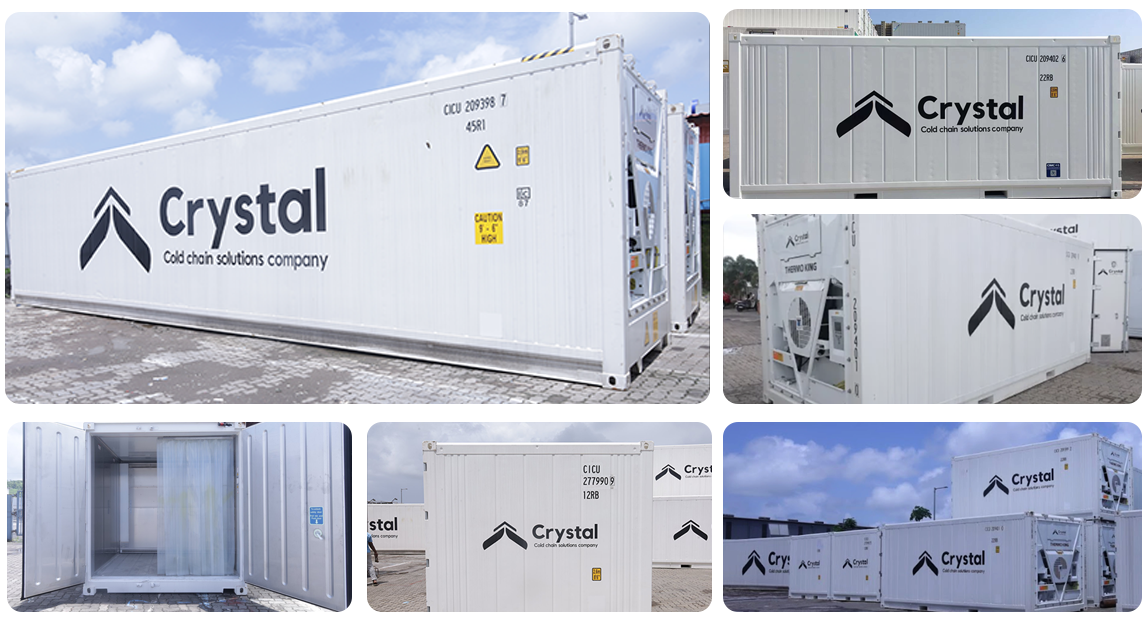

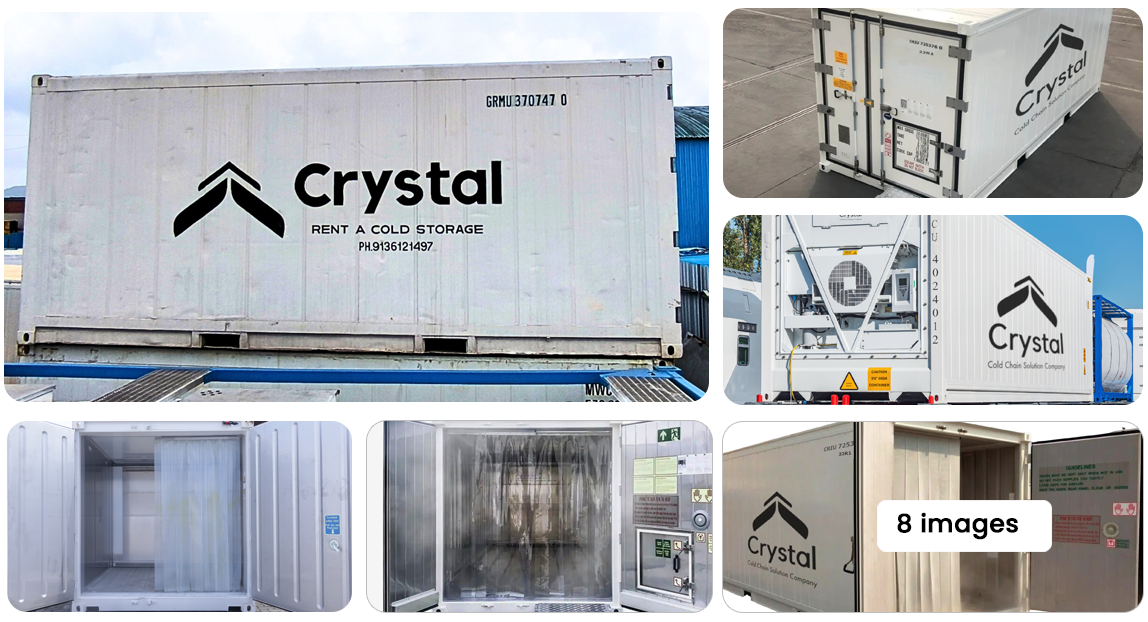

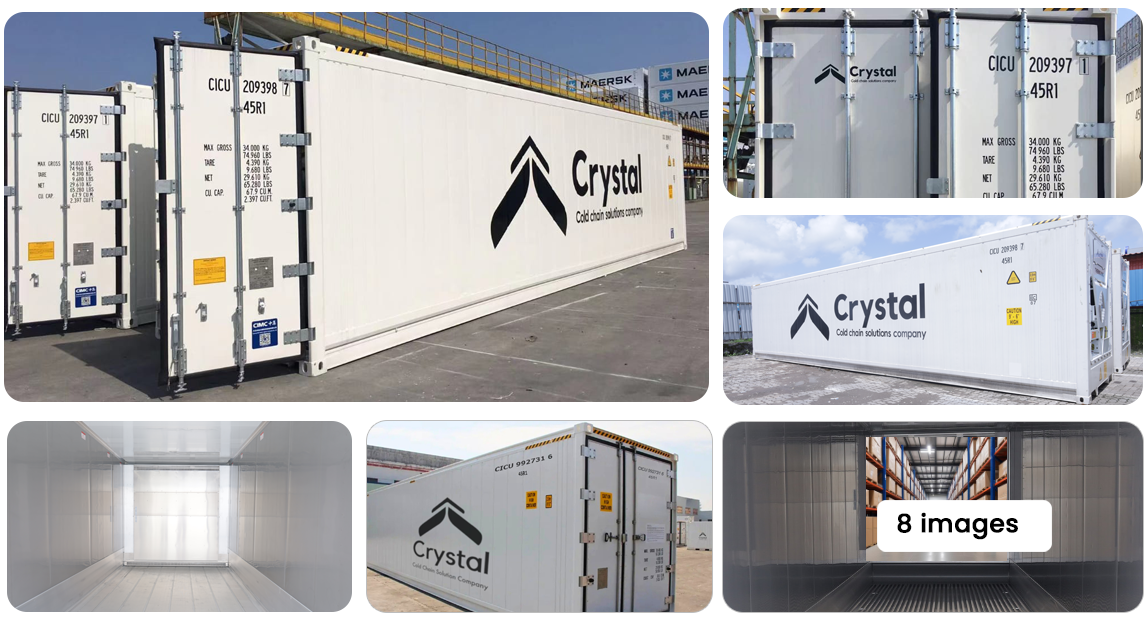

Reefer Containers

Reliable and efficient temperature control for storing sensitive goods

Company Profile

Crystal Group’s Refrigerated Containers, also known as Reefer Containers, offer precise temperature control from -25°C to +25°C, ideal for storing sensitive goods like food, pharmaceuticals, and flowers. With advanced cooling technology and durable construction, these containers ensure your products stay fresh and secure from origin to destination.

Container Features

Plug & Play Operation:

Ready to use with minimal setup, allowing for quick deployment and hassle-free operation.

Precise Temperature Control:

Maintain exact temperature settings from -25°C to +25°C, ensuring your cargo stays in perfect condition.

Cost-Effective OPEX:

Designed to reduce operational expenses through energy efficiency and low maintenance costs, maximizing your ROI.

Advanced Cooling Technology:

Equipped with state-of-the-art refrigeration systems for consistent and reliable cooling.

Container Specifications

TypeTare WeightMax Gross Weight
10 ft2,650 kg (5,843 lbs)10,160 kg (22,400 lbs)
20 ft3,000 kg (6,614 lbs)30,480 kg (67,200 lbs)

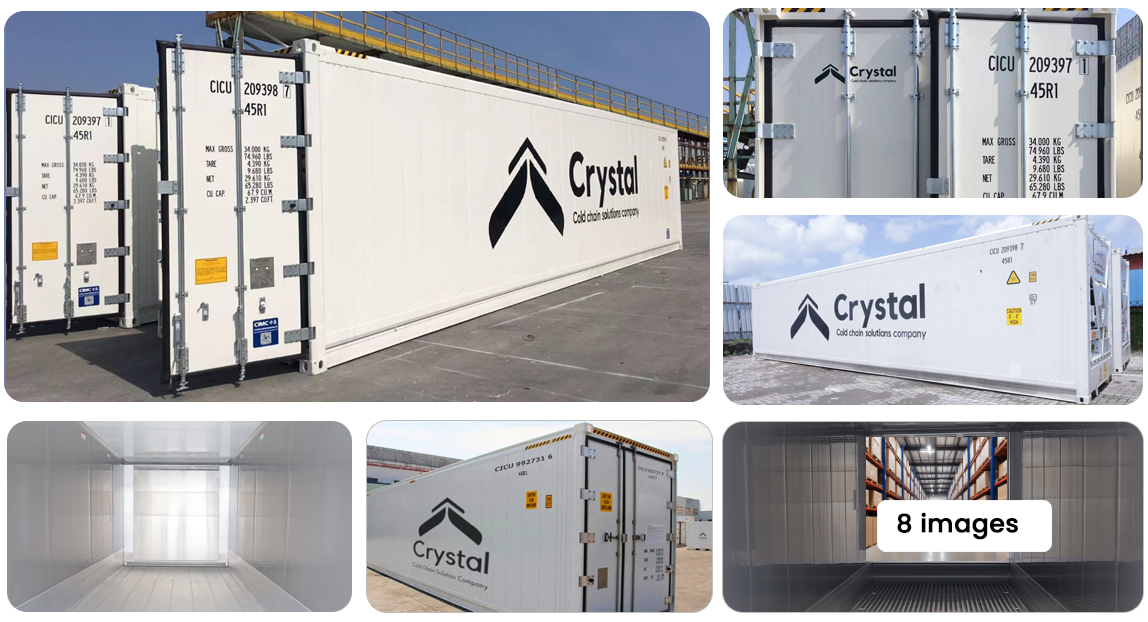

40 ft4,800 kg (10,582 lbs)34,000 kg (74,960 lbs)
TypeWidthHeight
10 ft7.45 ft (2,268 mm)7.52 ft (2,292 mm)
20 ft7.52 ft (2,290 mm)7.42 ft (2,260 mm)
40 ft7.52 ft (2,290 mm)7.42 ft (2,260 mm)
TypeVolume
10 ft12 cubic meters
20 ft28 cubic meters
40 ft67.5 cubic meters
TypeLengthWidthHeight
10 ft (INT)7.83 ft (3,040 mm)8.00 ft (2,438 mm)7.52 ft (2,591 mm)
10 ft (EXT)9.98 ft (2,386 mm)7.45 ft (2,268 mm)8.60 ft (2,292 mm)
20 ft (EXT)20.00 ft (6,058 mm)8.00 ft (2,438 mm)8.60 ft (2,591 mm)
20 ft (INT)17.87 ft (5,450 mm)7.52 ft (2,290 mm)7.42 ft (2,260 mm)
40 ft (EXT)40.00 ft (12,192 mm)8.00 ft (2,438 mm)8.60 ft (2,591 mm)
40 ft (INT)37.88 ft (11,557 mm)7.52 ft (2,290 mm)7.42 ft (2,260 mm)

Istallation Procecss

Our Containers Selection Parameters

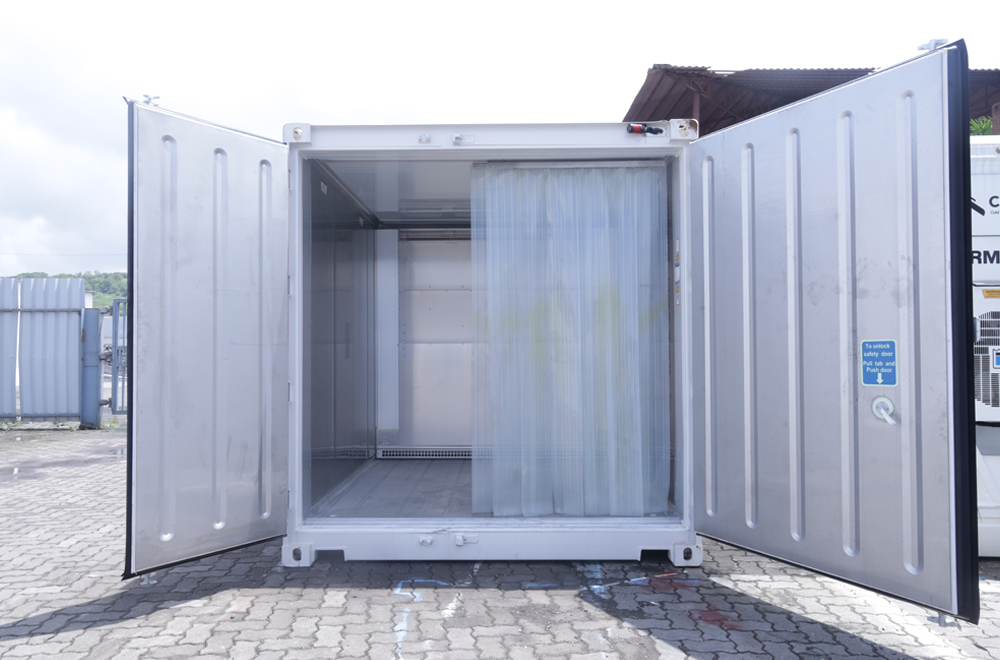

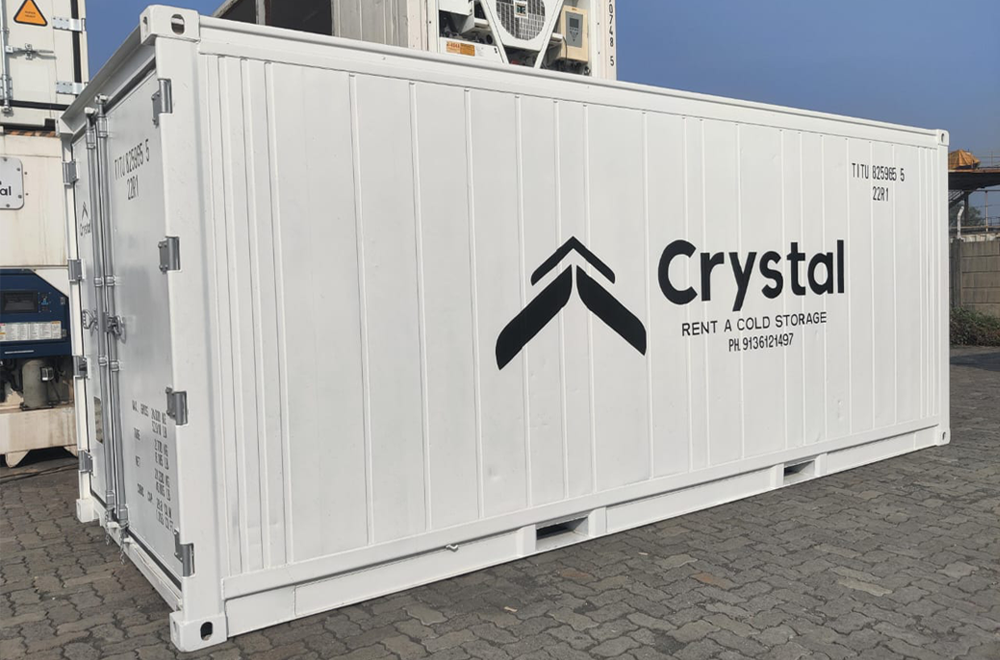

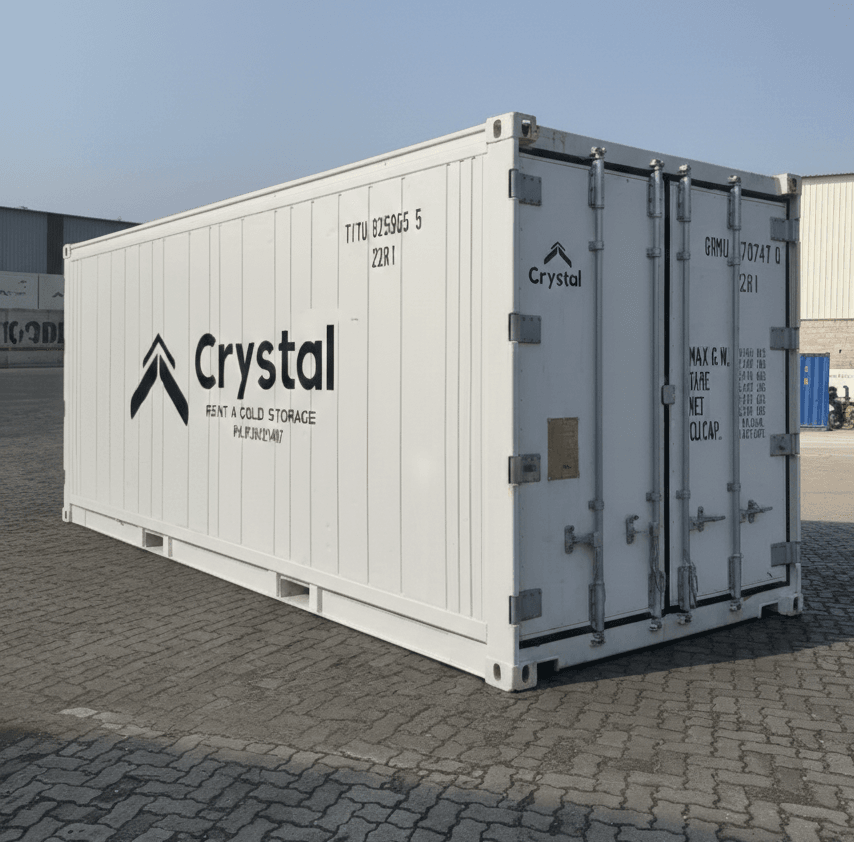

20ft reefer shipping container from  Containers has the following dimensions:

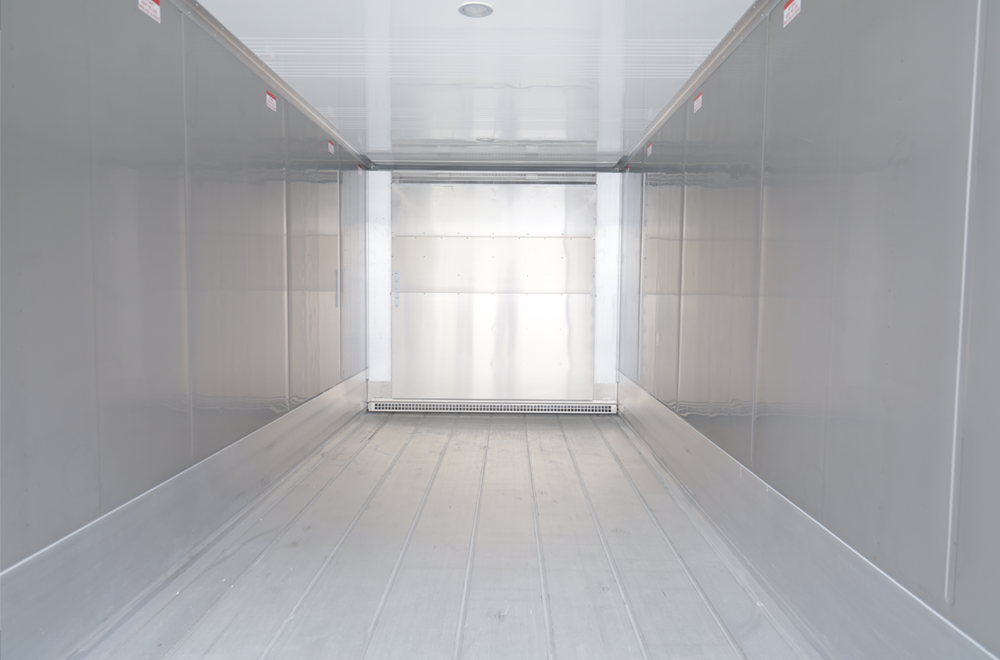

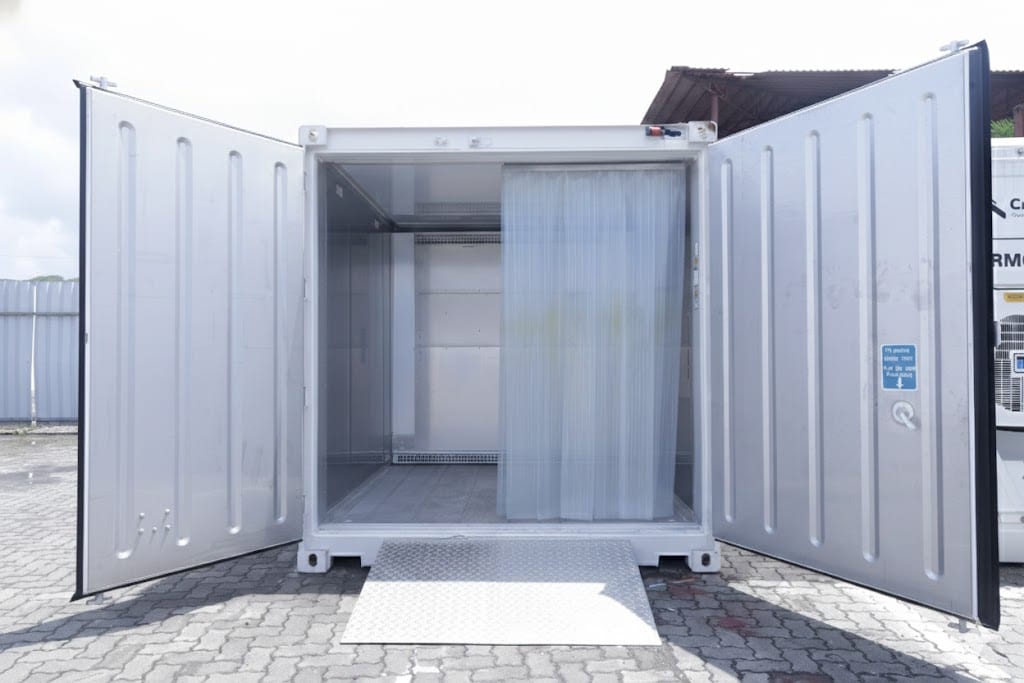

Internal measurement5.454m/2.284m/2.263m ( 17’11/7’6/7’5 )
Floor area13.93 m² ( 150sqft )
Volume28.2 m³ ( 999 cu ft )
Maximum Gross weight30,480kg ( 67,200 lbs )
Tare Weight30,480kg ( 67,200 lbs )
Payload capacity27,500 kg ( 60,630 lbs )
Heat Leakagekcal/deg.c.hr23

Our Containers Guide

Cold Chain Solutions Are At The Heart Of Crystal Group, Where We Specialize In The Sale And Rental Of Reefer Containers, Dry Containers, And ISO Tanks. We Are Dedicated To Being Your Trusted Partner From Freezing To Delivery, Offering Tailored Solutions For Portable Cold Storage, Warehousing, And Transportation At Your Desired Locations Throughout India.

Industries Used In

FMCG

Pharmaceuticals

Agriculture

Chemical

Cosmetics

Electronics

Others
