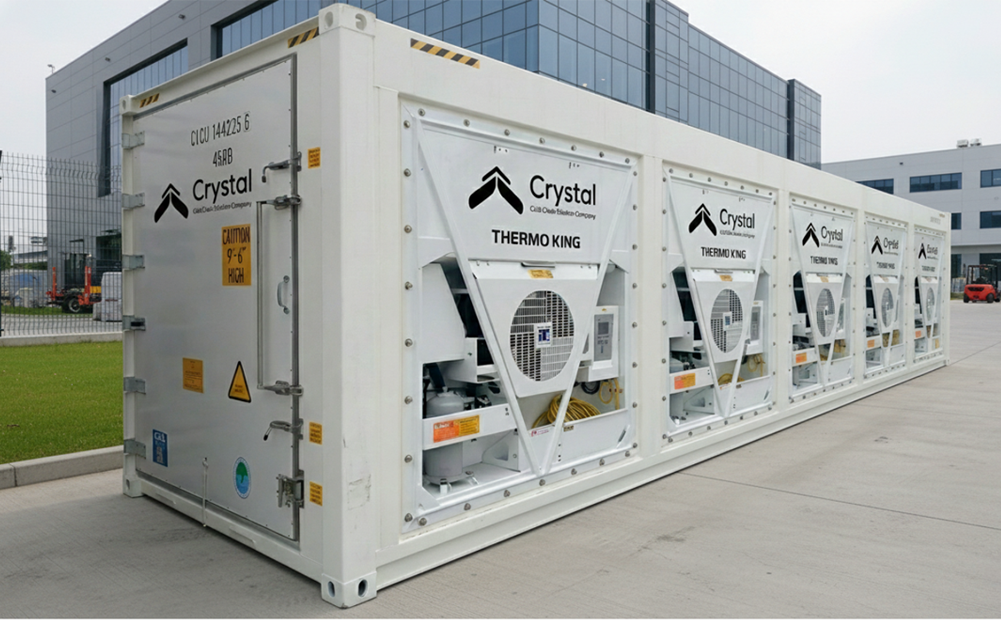

A Blast Freezer quickly lowers the temperature of products, typically food, to freeze them rapidly and preserve their quality. It uses high-velocity fans to circulate cold air, freezing items evenly at temperatures between +25°C to -40°C. This process prevents ice crystal formation, maintaining the food’s texture and nutritional value. Blast Freezers are essential in industries like food processing and pharmaceuticals where fast, efficient freezing is critical.
Uses powerful fans to circulate cold air at high speeds, ensuring uniform cooling across all products.​
Allows for accurate temperature settings, usually between +25°C to -40°C
Designed to quickly reduce the temperature of food or other products.
Meets industry standards for hygiene and food safety, crucial for sectors like food processing and pharmaceuticals.
| Type | Tare Weight | Max Gross Weight |
|---|---|---|
| 10 ft | 2,650 kg (5,843 lbs) | 10,160 kg (22,400 lbs) |
| 20 ft | 3,000 kg (6,614 lbs) | 30,480 kg (67,200 lbs) |
| 40 ft | 4,800 kg (10,582 lbs) | 34,000 kg (74,960 lbs) |
| Type | Width | Height |
|---|---|---|
| 10 ft | 7.45 ft (2,268 mm) | 7.52 ft (2,292 mm) |
| 20 ft | 7.52 ft (2,290 mm) | 7.42 ft (2,260 mm) |
| 40 ft | 7.52 ft (2,290 mm) | 7.42 ft (2,260 mm) |
| Type | Volume |
|---|---|
| 10 ft | 12 cubic meters |
| 20 ft | 28 cubic meters |
| 40 ft | 67.5 cubic meters |
| Type | Length | Width | Height |
|---|---|---|---|
| 10 ft (INT) | 7.83 ft (2,386 mm) | 7.45 ft (2,268 mm) | 7.52 ft (2,292 mm) |
| 10 ft (EXT) | 9.98 ft (3,040 mm) | 8.00 ft (2,438 mm) | 8.60 ft (2,591 mm) |
| 20 ft (EXT) | 20.00 ft (6,058 mm) | 8.00 ft (2,438 mm) | 8.60 ft (2,591 mm) |
| 20 ft (INT) | 17.87 ft (5,450 mm) | 7.52 ft (2,290 mm) | 7.42 ft (2,260 mm) |
| 40 ft (EXT) | 40.00 ft (12,192 mm) | 8.00 ft (2,438 mm) | 8.60 ft (2,591 mm) |
| 40 ft (INT) | 37.88 ft (11,557 mm) | 7.52 ft (2,290 mm) | 7.42 ft (2,260 mm) |

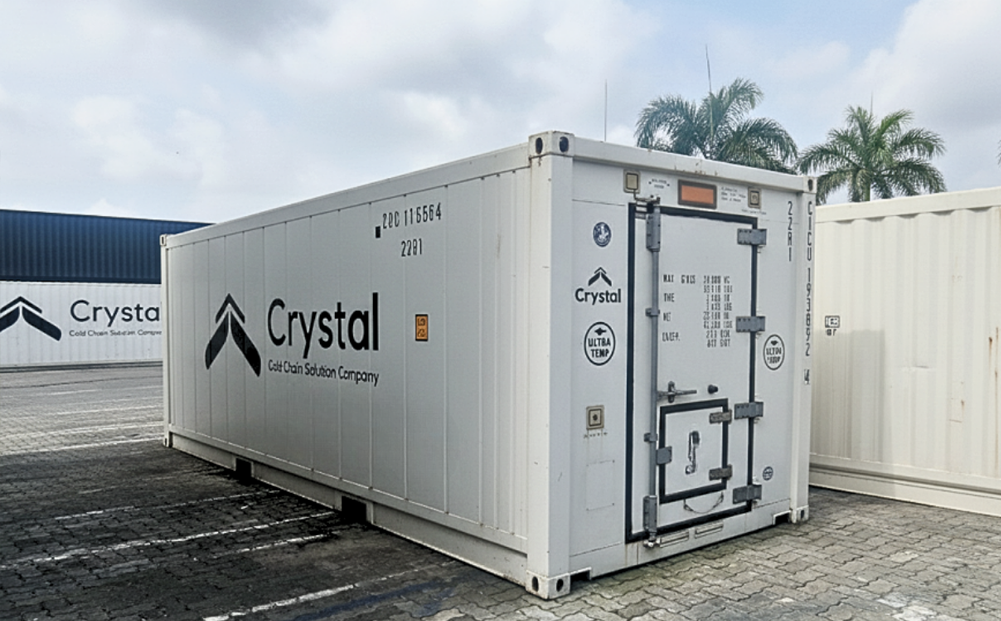

20ft reefer shipping container from Containers has the following dimensions:
| Internal measurement | 5.454m/2.284m/2.263m ( 17’11/7’6/7’5 ) |
| Floor area | 13.93 m² ( 150sqft ) |
| Volume | 28.2 m³ ( 999 cu ft ) |
| Maximum Gross weight | 30,480kg ( 67,200 lbs ) |
| Tare Weight | 30,480kg ( 67,200 lbs ) |
| Payload capacity | 27,500 kg ( 60,630 lbs ) |
| Heat Leakagekcal/deg.c.hr | 23 |
Cold Chain Solutions Are At The Heart Of Crystal Group, Where We Specialize In The Sale And Rental Of Reefer Containers, Dry Containers, And ISO Tanks. We Are Dedicated To Being Your Trusted Partner From Freezing To Delivery, Offering Tailored Solutions For Portable Cold Storage, Warehousing, And Transportation At Your Desired Locations Throughout India.
