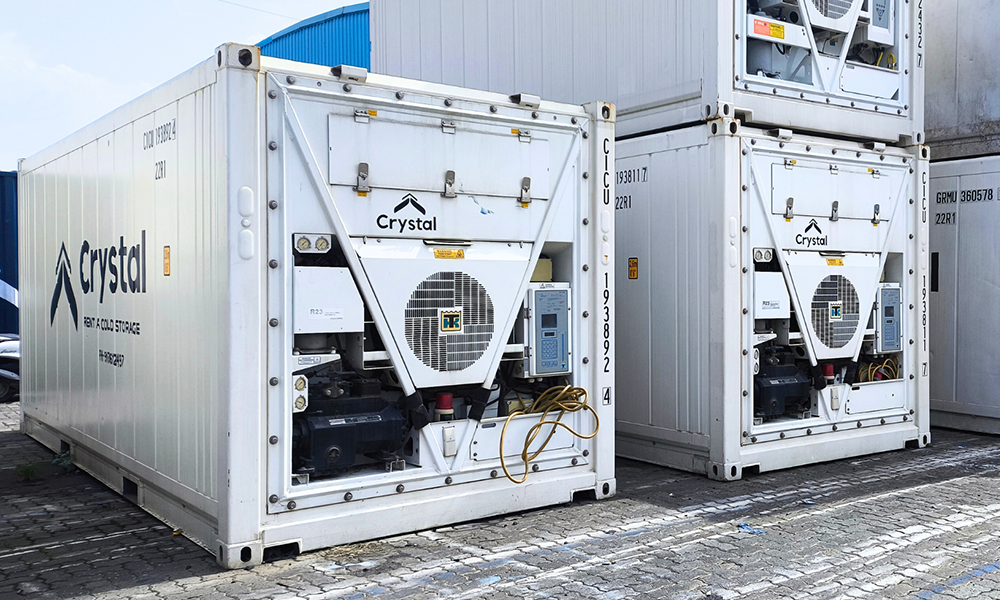

Crystal Group’s Super Freezers provide ultra-low temperature storage down to -70°C, ensuring safe preservation of seafood, pharmaceuticals, and biological samples. With advanced insulation, precise temperature control, and built-in safety features like alarms and backup power, they deliver reliable performance for medical, biotech, and pharmaceutical industries.
Engineered for energy efficiency, super freezers minimize power consumption while maintaining ultra-low temperatures
Designed to reach and maintain extremely low temperatures, typically upto -70°C
Includes alarms, monitoring systems, and backup power options
Equipped with superior insulation materials to prevent heat ingress
| Size | Length | Width | Height |
|---|---|---|---|
| 10ft Crystal | 10ft | 8ft | 8.5ft |
| 20ft Crystal | 20ft | 8ft | 8.6ft |
| 40ft Crystal | 40ft | 8ft | 9.6ft |
| Size | Length | Width | Height |
|---|---|---|---|
| 10ft Crystal | 2.99m | 2.44m | 2.59m |
| 20ft Crystal | 6.06m | 2.44m | 2.60m |
| 40ft Crystal | 12.19m | 2.44m | 2.90m |
Measurements are approximate and should be treated as a guide. Slight variations are possible.
| Size | Length | Width | Height |
|---|---|---|---|
| 10ft Crystal | 7.6ft | 7.5ft | 7.6ft |
| 20ft Crystal | 17.6ft | 7.5ft | 7.6ft |
| 40ft Crystal | 37.7ft | 7.5ft | 8.5ft |
| Size | Length | Width | Height |
|---|---|---|---|
| 10ft Crystal | 2.30m | 2.29m | 2.31m |
| 20ft Crystal | 5.36m | 2.29m | 2.31m |
| 40ft Crystal | 11.50m | 2.29m | 2.60m |
Measurements are approximate and should be treated as a guide. Slight variations are possible.
| Size | Tare weight | Floor area | Capacity |
|---|---|---|---|
| 10ft Crystal | 4,541.4lb | 56.6ft² | 429.3ft³ |
| 20ft Crystal | 6,106.9lb | 132.1ft² | 1,001.2ft³ |
| 40ft Crystal | 10,251.4lb | 283.4ft² | 2,417.9ft³ |
| Size | Tare weight | Floor area | Capacity |
|---|---|---|---|
| 10ft Crystal | 2,059kg | 5.27m² | 12.15m³ |
| 20ft Crystal | 2,770kg | 12.27m² | 28.35m³ |
| 40ft Crystal | 4,649kg | 26.34m² | 68.46m³ |
All measurements should be used as a guide. Small variations can and do apply.
| Type | Tare Weight | Max Gross Weight |
|---|---|---|
| 10 ft | 2,650 kg (5,843 lbs) | 10,160 kg (22,400 lbs) |
| 20 ft | 3,000 kg (6,614 lbs) | 30,480 kg (67,200 lbs) |
| 40 ft | 4,800 kg (10,582 lbs) | 34,000 kg (74,960 lbs) |
| Type | Width | Height |
|---|---|---|
| 10 ft | 7.45 ft (2,268 mm) | 7.52 ft (2,292 mm) |
| 20 ft | 7.52 ft (2,290 mm) | 7.42 ft (2,260 mm) |
| 40 ft | 7.52 ft (2,290 mm) | 7.42 ft (2,260 mm) |
| Type | Volume |
|---|---|
| 10 ft | 12 cubic meters |
| 20 ft | 28 cubic meters |
| 40 ft | 67.5 cubic meters |
| Type | Length | Width | Height |
|---|---|---|---|
| 10 ft (INT) | 7.83 ft (2,386 mm) | 7.45 ft (2,268 mm) | 7.52 ft (2,292 mm) |
| 10 ft (EXT) | 9.98 ft (3,040 mm) | 8.00 ft (2,438 mm) | 8.60 ft (2,591 mm) |
| 20 ft (EXT) | 20.00 ft (6,058 mm) | 8.00 ft (2,438 mm) | 8.60 ft (2,591 mm) |
| 20 ft (INT) | 17.87 ft (5,450 mm) | 7.52 ft (2,290 mm) | 7.42 ft (2,260 mm) |
| 40 ft (EXT) | 40.00 ft (12,192 mm) | 8.00 ft (2,438 mm) | 8.60 ft (2,591 mm) |
| 40 ft (INT) | 37.88 ft (11,557 mm) | 7.52 ft (2,290 mm) | 7.42 ft (2,260 mm) |
Sizes
10FT, 20FT, 40FT
Sizes
10FT, 20FT, 40FT
Sizes
10FT, 20FT, 40FT
Size:
10FT, 20FT, 40FT
Sizes:
10FT, 20FT, 40FT
Sizes
10FT, 20FT, 40FT
Sizes
10FT, 20FT, 40FT
Sizes
10FT, 20FT, 40FT
Sizes
10FT, 20FT, 40FT
Sizes
10FT, 20FT, 40FT
Sizes
10FT, 20FT, 40FT
A Super Freezer Container is a high-performance refrigerated unit designed to maintain ultra-low temperatures, typically down to -70°C. These containers are essential for preserving sensitive items such as seafood, biological samples, and pharmaceuticals.
Super Freezer Containers are available in standard sizes, including 10-foot, 20-foot, and 40-foot configurations.
These containers are engineered to reach and sustain extremely low temperatures, typically up to -70°C.
Industries such as medical research, biotechnology, seafood processing, and pharmaceuticals benefit from these containers due to their ability to preserve sensitive items at ultra-low temperatures.
Yes, they are designed for portability, allowing for easy transportation and deployment in various locations as needed.
Yes, customization options are available to meet specific storage requirements or operational needs.
